CircuitElements.hpp File Reference
#include "CircuitElements/Resistor.hpp"#include "CircuitElements/Capacitor.hpp"#include "CircuitElements/NLCapacitor.hpp"#include "CircuitElements/Inductor.hpp"#include "CircuitElements/VoltageSource.hpp"#include "CircuitElements/SinusoidalVoltageSource.hpp"#include "CircuitElements/TimeSeriesVoltageSource.hpp"#include "CircuitElements/CurrentSource.hpp"#include "CircuitElements/BJT.hpp"#include "CircuitElements/Diode.hpp"#include "CircuitElements/SParameterBlock.hpp"#include "CircuitElements/SParameterBlockVF.hpp"#include "CircuitElements/NLNMOS.hpp"#include "CircuitElements/NLCurrentSource.hpp"

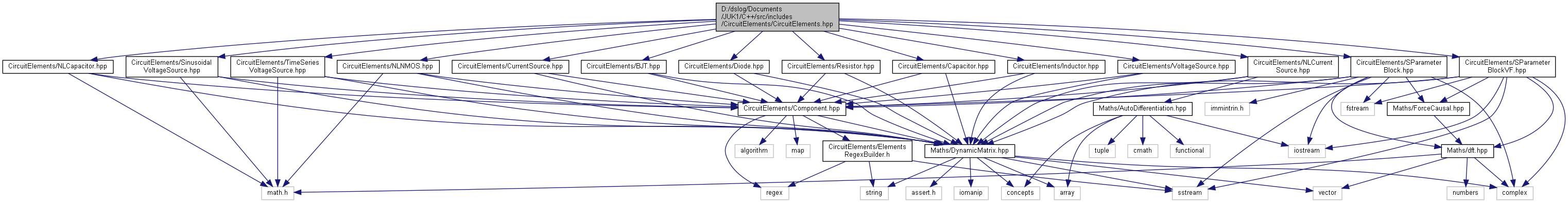

Include dependency graph for CircuitElements.hpp:

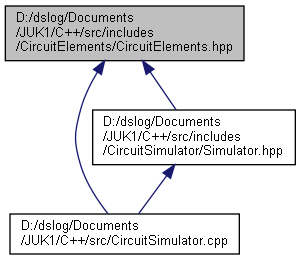

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Classes | |
| struct | CircuitElements< T > |
| a glorified container for the different types of components. More... | |
Enumerations | |
| enum class | SolutionStage { StaticSolution = 0 , DynamicSolution = 1 , NonLinearSolution = 2 } |
| An enum to track how far we want to go in a solution. More... | |
| enum class | ComponentType { Resistor , Capacitor , Inductor , VoltageSource , CurrentSource , BJT , Diode } |
| An enum for component types. Current unused. More... | |
Enumeration Type Documentation
◆ ComponentType
|
strong |
An enum for component types. Current unused.
| Enumerator | |
|---|---|
| Resistor | |
| Capacitor | |
| Inductor | |
| VoltageSource | |
| CurrentSource | |
| BJT | |
| Diode | |
Definition at line 31 of file CircuitElements.hpp.
◆ SolutionStage
|
strong |
An enum to track how far we want to go in a solution.
| Enumerator | |
|---|---|
| StaticSolution | |
| DynamicSolution | |
| NonLinearSolution | |
Definition at line 24 of file CircuitElements.hpp.
