NLCapacitor.hpp File Reference

#include "CircuitElements/Component.hpp"
#include "Maths/DynamicMatrix.hpp"
#include <math.h>

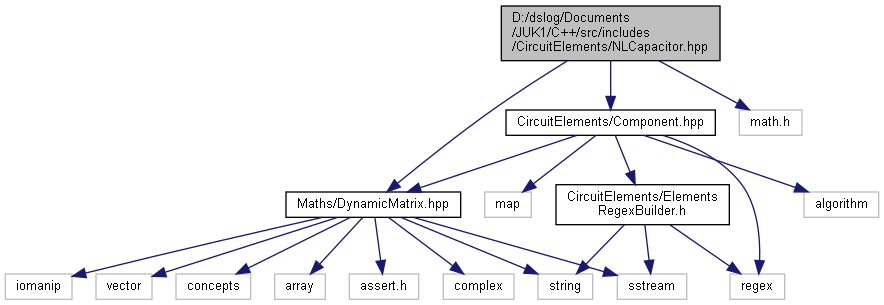

Include dependency graph for NLCapacitor.hpp:

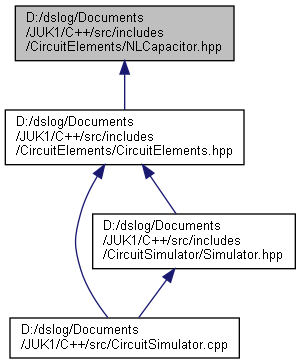

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	NLCapacitor< T >
	a non-linear capacitor model of the form C = C_p + C_o * ( 1.0 + tanh( P_10 + P_11 * u ) ) More...
