The main class to hold all of the relevant simulation data. More...

#include <Simulator.hpp>

Collaboration diagram for SimulationEnvironment< VT >:

[legend]

Public Member Functions
	SimulationEnvironment (std::string netlistPath)
	Setup the simulation environment from a netlist. More...

void	setDCOpPoint ()
	a function to determine and set the DC operating point More...

void	simulate ()
	Where a lot of the magic starts. This is what runs the simulation. More...

void	printGraph (size_t node)
	Outputs a single node's (or current's) time series to a graph, saving as both eps and png. More...

void	printMultipleOnGraph (std::vector< size_t > nodeVec, std::string suffix="")
	Similar to printGraph, but instead can plot multiple series on the same graph. More...

void	dataDump ()
	Simple function to dump the output of the simulator in a matlab table readable format. More...

Private Member Functions
void	parseGraph (std::string line)
	Helper function to pull indices from graph netlist directive. More...

Private Attributes
std::string	outputFilePath = "datadump.txt"

std::string	netlistPath = ""

double	initialTime

double	timestep

double	finalTime

size_t	steps

size_t	numNodes = 1

size_t	numCurrents = 0

size_t	numDCCurrents = 0

bool	performDCAnalysis = true

CircuitElements< VT >	elements
	A collection of all the circuit elements. More...

LUPair< VT >	luPair
	Preallocated space to prevent repeated allocations and deallocations. More...

Matrix< VT >	scratchSpace
	Preallocated space to prevent repeated allocations and deallocations. using during the leftDivide to solve the MNA system. More...

std::vector< std::vector< size_t > >	nodesToGraph
	Keeps track of the nodes to be graphed after simulation. More...

Matrix< VT >	solutionMat
	Preallocated space to store the results in. More...

Detailed Description

template<typename VT>
class SimulationEnvironment< VT >

The main class to hold all of the relevant simulation data.

Template Parameters

VT	The type used for values. e.g. double, float, etc

Definition at line 46 of file Simulator.hpp.

Constructor & Destructor Documentation

◆ SimulationEnvironment()

template<typename VT >

SimulationEnvironment< VT >::SimulationEnvironment ( std::string netlistPath )

inline

Setup the simulation environment from a netlist.

Parameters

netlistPath Path to the netlist that is going to be used in the simulation

Definition at line 52 of file Simulator.hpp.

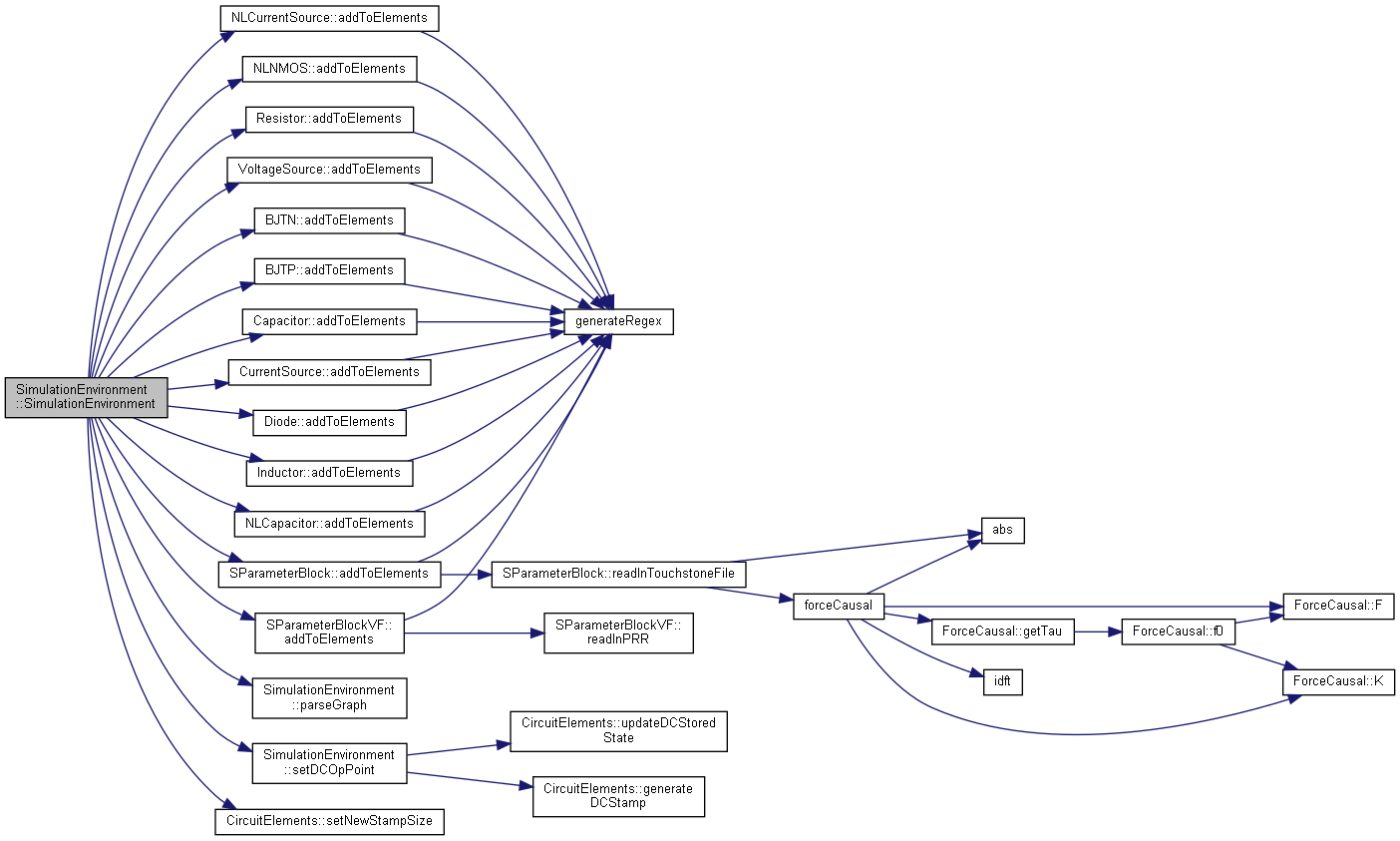

Here is the call graph for this function:

Member Function Documentation

◆ dataDump()

template<typename VT >

void SimulationEnvironment< VT >::dataDump ( )

inline

Simple function to dump the output of the simulator in a matlab table readable format.

Definition at line 392 of file Simulator.hpp.

Here is the caller graph for this function:

◆ parseGraph()

template<typename VT >

void SimulationEnvironment< VT >::parseGraph ( std::string line )

inlineprivate

Helper function to pull indices from graph netlist directive.

Parameters

line	The line to parse

Definition at line 466 of file Simulator.hpp.

Here is the caller graph for this function:

◆ printGraph()

template<typename VT >

void SimulationEnvironment< VT >::printGraph ( size_t node )

inline

Outputs a single node's (or current's) time series to a graph, saving as both eps and png.

Parameters

node	The index of the node to plot

Definition at line 333 of file Simulator.hpp.

Here is the call graph for this function:

◆ printMultipleOnGraph()

template<typename VT >

void SimulationEnvironment< VT >::printMultipleOnGraph	(	std::vector< size_t >	nodeVec,
		std::string	suffix = `""`
	)

inline

Similar to printGraph, but instead can plot multiple series on the same graph.

Parameters

nodeVec	A vector of node indices
suffix	What's appended to "Graph" to make the name of the output file.

Definition at line 362 of file Simulator.hpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setDCOpPoint()

template<typename VT >

void SimulationEnvironment< VT >::setDCOpPoint ( )

inline

a function to determine and set the DC operating point

Definition at line 230 of file Simulator.hpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ simulate()

template<typename VT >

void SimulationEnvironment< VT >::simulate ( )

inline

Where a lot of the magic starts. This is what runs the simulation.

This function is a simple newton-raphson solver, it still has room for improvement, such as early termination when the loop converges.

After the simulation has run to completion, the raw data is dumped, and any graphs that were due to be generated are created.

Definition at line 265 of file Simulator.hpp.

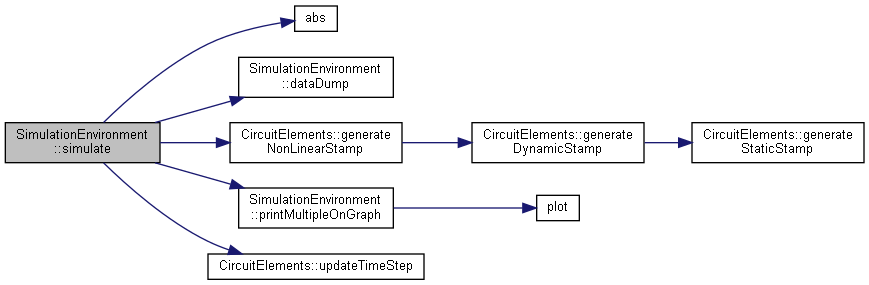

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ elements

template<typename VT >

CircuitElements<VT> SimulationEnvironment< VT >::elements

private

A collection of all the circuit elements.

Definition at line 493 of file Simulator.hpp.

◆ finalTime

template<typename VT >

double SimulationEnvironment< VT >::finalTime

private

Definition at line 485 of file Simulator.hpp.

◆ initialTime

template<typename VT >

double SimulationEnvironment< VT >::initialTime

private

Definition at line 483 of file Simulator.hpp.

◆ luPair

template<typename VT >

LUPair<VT> SimulationEnvironment< VT >::luPair

private

Preallocated space to prevent repeated allocations and deallocations.

Definition at line 496 of file Simulator.hpp.

◆ netlistPath

template<typename VT >

std::string SimulationEnvironment< VT >::netlistPath = ""

private

Definition at line 481 of file Simulator.hpp.

◆ nodesToGraph

template<typename VT >

std::vector<std::vector<size_t> > SimulationEnvironment< VT >::nodesToGraph

private

Keeps track of the nodes to be graphed after simulation.

Definition at line 502 of file Simulator.hpp.

◆ numCurrents

template<typename VT >

size_t SimulationEnvironment< VT >::numCurrents = 0

private

Definition at line 489 of file Simulator.hpp.

◆ numDCCurrents

template<typename VT >

size_t SimulationEnvironment< VT >::numDCCurrents = 0

private

Definition at line 490 of file Simulator.hpp.

◆ numNodes

template<typename VT >

size_t SimulationEnvironment< VT >::numNodes = 1

private

Definition at line 488 of file Simulator.hpp.

◆ outputFilePath

template<typename VT >

std::string SimulationEnvironment< VT >::outputFilePath = "datadump.txt"

private

Definition at line 480 of file Simulator.hpp.

◆ performDCAnalysis

template<typename VT >

bool SimulationEnvironment< VT >::performDCAnalysis = true

private

Definition at line 491 of file Simulator.hpp.

◆ scratchSpace

template<typename VT >

Matrix<VT> SimulationEnvironment< VT >::scratchSpace

private

Preallocated space to prevent repeated allocations and deallocations. using during the leftDivide to solve the MNA system.

Definition at line 499 of file Simulator.hpp.

◆ solutionMat

template<typename VT >

Matrix<VT> SimulationEnvironment< VT >::solutionMat

private

Preallocated space to store the results in.

Definition at line 505 of file Simulator.hpp.

◆ steps

template<typename VT >

size_t SimulationEnvironment< VT >::steps

private

Definition at line 486 of file Simulator.hpp.

◆ timestep

template<typename VT >

double SimulationEnvironment< VT >::timestep

private

Definition at line 484 of file Simulator.hpp.

The documentation for this class was generated from the following file:

D:/dslog/Documents/JUK1/C++/src/includes/CircuitSimulator/Simulator.hpp
