A DTIR based model of an s-parameter block. More...

#include <SParameterBlock.hpp>

Inheritance diagram for SParameterBlock< T >:

Collaboration diagram for SParameterBlock< T >:

Public Member Functions
T	aWaveConvValue (size_t portIndex, const Matrix< T > &solutionMatrix, const size_t n, T sTimePoint, const T simulationTimestep, size_t sizeG_A) const
	performs a linear interpolation and returns the a wave value for use in the convolution. More...

T	V_p (size_t p, const Matrix< T > &solutionMatrix, const size_t n, T simulationTimestep, size_t sizeG_A) const
	Determines the equivalent port voltage source by convolving the (historic) a wave values with the DTIR. More...

T	R_p (size_t p) const

T	beta_p (size_t p) const

void	addStaticStampTo (Stamp< T > &stamp) const
	Adds this component's static stamp to the target stamp. More...

void	addDynamicStampTo (Stamp< T > &stamp, const Matrix< T > &solutionMatrix, const size_t currentSolutionIndex, T simulationTimestep) const
	Adds this component's dynamic stamp to the target stamp. More...

void	addDCAnalysisStampTo (Stamp< T > &stamp, const Matrix< T > &solutionVector, size_t numCurrents) const
	adds this component's DC stamp to the target stamp. More...

void	updateStoredState (const Matrix< T > &solutionMatrix, const size_t currentSolutionIndex, T timestep, size_t sizeG_A)
	Updates any stored state based on the current solution index. More...

void	readInTouchstoneFile ()
	reads in the s-parameter data from a touchstone file. Currently it ignores the units of frequency, and only works with real-imag formatting More...

Public Member Functions inherited from Component< T >
virtual void	addNonLinearStampTo (Stamp< T > &destination, const Matrix< T > &solutionMatrix, const size_t currentSolutionIndex, T timestep=0) const
	adds this component's non-linear stamp to the target stamp. More...

virtual void	updateDCStoredState (const Matrix< T > &solutionVector, size_t sizeG_A, size_t numCurrents)
	a function to update the stored state of a component based on a DC value More...

virtual void	setTimestep (T timestep)
	initialises the component More...

virtual	~Component ()

Static Public Member Functions
static void	addToElements (const std::string &line, CircuitElements< T > &elements, size_t &numNodes, size_t &numCurrents, size_t &numDCCurrents)

Static Public Member Functions inherited from Component< T >
static void	addToElements (const std::string &line, CircuitElements< T > &elements, size_t &numNodes, size_t &numCurrents, size_t &numDCCurrents)
	Called as a helper to add the component to the elements class. More...

Public Attributes
std::string	touchstoneFilePath = ""

std::vector< SParameterPort< T > >	port

SParameterSequence< T >	s

T	z_ref = 0

T	fracMaxToKeep = 0

Public Attributes inherited from Component< T >
std::string	designator = ""
	The designator as in the netlist for e.g. More...

Detailed Description

template<typename T>
struct SParameterBlock< T >

A DTIR based model of an s-parameter block.

Template Parameters

T

Definition at line 87 of file SParameterBlock.hpp.

Member Function Documentation

◆ addDCAnalysisStampTo()

template<typename T >

void SParameterBlock< T >::addDCAnalysisStampTo	(	Stamp< T > &	destination,
		const Matrix< T > &	solutionVector,
		size_t	numCurrents
	)		const

inlinevirtual

adds this component's DC stamp to the target stamp.

Parameters

destination	The stamp to be added to.
solutionMatrix	A vector containing all past solutions to the circuit
numCurrents	The number of currents used by the transient simulation

Reimplemented from Component< T >.

Definition at line 240 of file SParameterBlock.hpp.

◆ addDynamicStampTo()

template<typename T >

void SParameterBlock< T >::addDynamicStampTo	(	Stamp< T > &	destination,
		const Matrix< T > &	solutionMatrix,
		const size_t	currentSolutionIndex,
		T	timestep
	)		const

inlinevirtual

Adds this component's dynamic stamp to the target stamp.

Parameters

destination	The stamp to be added to.
solutionMatrix	A vector containing all past solutions to the circuit
currentSolutionIndex	The current timeStep index
timestep	The length of each time step

Reimplemented from Component< T >.

Definition at line 228 of file SParameterBlock.hpp.

Here is the call graph for this function:

◆ addStaticStampTo()

template<typename T >

void SParameterBlock< T >::addStaticStampTo ( Stamp< T > & destination ) const

inlinevirtual

Adds this component's static stamp to the target stamp.

Parameters

destination The stamp to be added to.

Reimplemented from Component< T >.

Definition at line 194 of file SParameterBlock.hpp.

◆ addToElements()

template<typename T >

static void SParameterBlock< T >::addToElements	(	const std::string &	line,
		CircuitElements< T > &	elements,
		size_t &	numNodes,
		size_t &	numCurrents,
		size_t &	numDCCurrents
	)

inlinestatic

Definition at line 387 of file SParameterBlock.hpp.

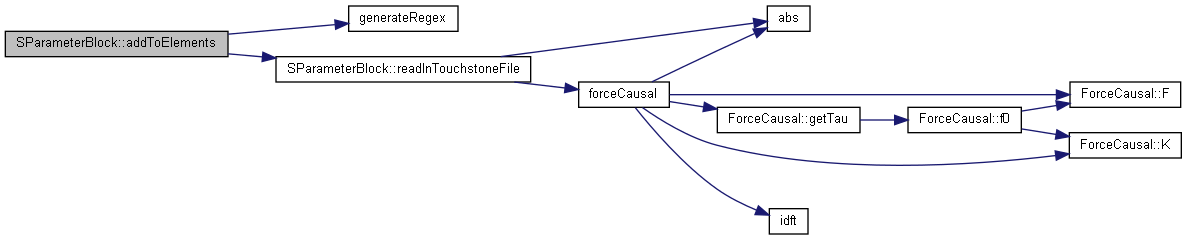

Here is the call graph for this function:

Here is the caller graph for this function:

◆ aWaveConvValue()

template<typename T >

T SParameterBlock< T >::aWaveConvValue	(	size_t	portIndex,
		const Matrix< T > &	solutionMatrix,
		const size_t	n,
		T	sTimePoint,
		const T	simulationTimestep,
		size_t	sizeG_A
	)		const

inline

performs a linear interpolation and returns the a wave value for use in the convolution.

Parameters

portIndex	The port being processed
solutionMatrix	The working solution vector
n	The current time step
sTimePoint	The time of DTIR
simulationTimestep	The timestep of the simulation
sizeG_A	The size of the voltage dependant portion of the stamp

Returns: the value for use in the convolution

Definition at line 106 of file SParameterBlock.hpp.

Here is the caller graph for this function:

◆ beta_p()

template<typename T >

T SParameterBlock< T >::beta_p ( size_t p ) const

inline

Definition at line 190 of file SParameterBlock.hpp.

◆ R_p()

template<typename T >

T SParameterBlock< T >::R_p ( size_t p ) const

inline

Definition at line 186 of file SParameterBlock.hpp.

◆ readInTouchstoneFile()

template<typename T >

void SParameterBlock< T >::readInTouchstoneFile ( )

inline

reads in the s-parameter data from a touchstone file. Currently it ignores the units of frequency, and only works with real-imag formatting

Definition at line 308 of file SParameterBlock.hpp.

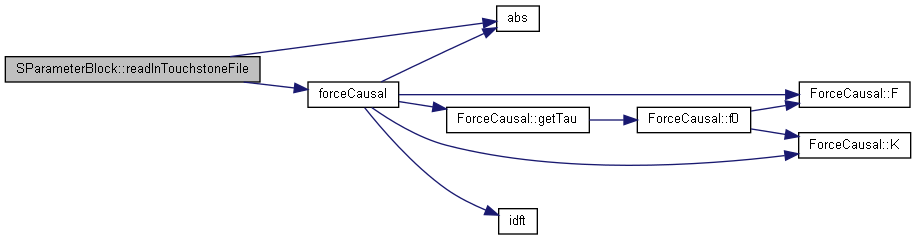

Here is the call graph for this function:

Here is the caller graph for this function:

◆ updateStoredState()

template<typename T >

void SParameterBlock< T >::updateStoredState	(	const Matrix< T > &	solutionMatrix,
		const size_t	currentSolutionIndex,
		T	timestep,
		size_t	numCurrents
	)

inlinevirtual

Updates any stored state based on the current solution index.

Parameters

solutionMatrix	A vector containing all past solutions to the circuit
currentSolutionIndex	The current timeStep index
timestep	The length of each time step
sizeG_A	the size of the A portion of G, marks the end of the equiv currents

Reimplemented from Component< T >.

Definition at line 299 of file SParameterBlock.hpp.

◆ V_p()

template<typename T >

T SParameterBlock< T >::V_p	(	size_t	p,
		const Matrix< T > &	solutionMatrix,
		const size_t	n,
		T	simulationTimestep,
		size_t	sizeG_A
	)		const

inline

Determines the equivalent port voltage source by convolving the (historic) a wave values with the DTIR.

Parameters

p	The port index
solutionMatrix	The solution vector of the circuit
n	The current timestep
simulationTimestep	the simulations timestep
sizeG_A	the size of the voltage dependant part of the stamp

Returns: Equivalent port voltage source voltage

Definition at line 166 of file SParameterBlock.hpp.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ fracMaxToKeep

template<typename T >

T SParameterBlock< T >::fracMaxToKeep = 0

Definition at line 93 of file SParameterBlock.hpp.

◆ port

template<typename T >

std::vector<SParameterPort<T> > SParameterBlock< T >::port

Definition at line 89 of file SParameterBlock.hpp.

◆ s

template<typename T >

SParameterSequence<T> SParameterBlock< T >::s

Definition at line 90 of file SParameterBlock.hpp.

◆ touchstoneFilePath

template<typename T >

std::string SParameterBlock< T >::touchstoneFilePath = ""

Definition at line 88 of file SParameterBlock.hpp.

◆ z_ref

template<typename T >

T SParameterBlock< T >::z_ref = 0

Definition at line 92 of file SParameterBlock.hpp.

The documentation for this struct was generated from the following file:

D:/dslog/Documents/JUK1/C++/src/includes/CircuitElements/SParameterBlock.hpp
