A vectorfitting based model of an s-parameter block. More...

#include <SParameterBlockVF.hpp>

Inheritance diagram for SParameterBlockVF< T >:

Collaboration diagram for SParameterBlockVF< T >:

Public Member Functions
std::complex< T >	history_p (const size_t p, const Matrix< T > &solutionMatrix, const size_t currentSolutionIndex, T timestep, const size_t sizeG_A) const

T	V_p (const size_t p, const Matrix< T > &solutionMatrix, const size_t currentSolutionIndex, T timestep, const size_t sizeG_A) const

T	awave_p (const size_t p, const Matrix< T > &solutionMatrix, const size_t currentSolutionIndex, const size_t sizeG_A) const

T	bwave_p (const size_t p, const Matrix< T > &solutionMatrix, const size_t currentSolutionIndex, const size_t sizeG_A) const

void	addStaticStampTo (Stamp< T > &stamp) const
	Adds this component's static stamp to the target stamp. More...

void	addDynamicStampTo (Stamp< T > &stamp, const Matrix< T > &solutionMatrix, const size_t currentSolutionIndex, T simulationTimestep) const
	Adds this component's dynamic stamp to the target stamp. More...

void	updateStoredState (const Matrix< T > &solutionMatrix, const size_t currentSolutionIndex, T timestep, size_t sizeG_A)
	Updates any stored state based on the current solution index. More...

void	setConstants (T timestep)

void	setFirstOrder (T timestep)

void	setSecondOrder (T timestep)

void	setTimestep (T timestep)
	initialises the component More...

void	readInPRR (std::string filePath, size_t numPorts)

void	addDCAnalysisStampTo (Stamp< T > &stamp, const Matrix< T > &solutionVector, size_t numCurrents) const
	adds this component's DC stamp to the target stamp. More...

Public Member Functions inherited from Component< T >
virtual void	addNonLinearStampTo (Stamp< T > &destination, const Matrix< T > &solutionMatrix, const size_t currentSolutionIndex, T timestep=0) const
	adds this component's non-linear stamp to the target stamp. More...

virtual void	updateDCStoredState (const Matrix< T > &solutionVector, size_t sizeG_A, size_t numCurrents)
	a function to update the stored state of a component based on a DC value More...

virtual	~Component ()

Static Public Member Functions
static void	addToElements (const std::string &line, CircuitElements< T > &elements, size_t &numNodes, size_t &numCurrents, size_t &numDCCurrents)

Static Public Member Functions inherited from Component< T >
static void	addToElements (const std::string &line, CircuitElements< T > &elements, size_t &numNodes, size_t &numCurrents, size_t &numDCCurrents)
	Called as a helper to add the component to the elements class. More...

Public Attributes
std::vector< SParameterPortVF< T > >	port

size_t	numPorts = 0

bool	firstOrder = true

T	z_ref = 0

Public Attributes inherited from Component< T >
std::string	designator = ""
	The designator as in the netlist for e.g. More...

Detailed Description

template<typename T>
struct SParameterBlockVF< T >

A vectorfitting based model of an s-parameter block.

Template Parameters

T

Definition at line 78 of file SParameterBlockVF.hpp.

Member Function Documentation

◆ addDCAnalysisStampTo()

template<typename T >

void SParameterBlockVF< T >::addDCAnalysisStampTo	(	Stamp< T > &	destination,
		const Matrix< T > &	solutionVector,
		size_t	numCurrents
	)		const

inlinevirtual

adds this component's DC stamp to the target stamp.

Parameters

destination	The stamp to be added to.
solutionMatrix	A vector containing all past solutions to the circuit
numCurrents	The number of currents used by the transient simulation

Reimplemented from Component< T >.

Definition at line 445 of file SParameterBlockVF.hpp.

◆ addDynamicStampTo()

template<typename T >

void SParameterBlockVF< T >::addDynamicStampTo	(	Stamp< T > &	destination,
		const Matrix< T > &	solutionMatrix,
		const size_t	currentSolutionIndex,
		T	timestep
	)		const

inlinevirtual

Adds this component's dynamic stamp to the target stamp.

Parameters

destination	The stamp to be added to.
solutionMatrix	A vector containing all past solutions to the circuit
currentSolutionIndex	The current timeStep index
timestep	The length of each time step

Reimplemented from Component< T >.

Definition at line 192 of file SParameterBlockVF.hpp.

Here is the call graph for this function:

◆ addStaticStampTo()

template<typename T >

void SParameterBlockVF< T >::addStaticStampTo ( Stamp< T > & destination ) const

inlinevirtual

Adds this component's static stamp to the target stamp.

Parameters

destination The stamp to be added to.

Reimplemented from Component< T >.

Definition at line 153 of file SParameterBlockVF.hpp.

◆ addToElements()

template<typename T >

static void SParameterBlockVF< T >::addToElements	(	const std::string &	line,
		CircuitElements< T > &	elements,
		size_t &	numNodes,
		size_t &	numCurrents,
		size_t &	numDCCurrents
	)

inlinestatic

Definition at line 502 of file SParameterBlockVF.hpp.

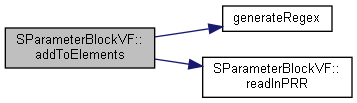

Here is the call graph for this function:

Here is the caller graph for this function:

◆ awave_p()

template<typename T >

T SParameterBlockVF< T >::awave_p	(	const size_t	p,
		const Matrix< T > &	solutionMatrix,
		const size_t	currentSolutionIndex,
		const size_t	sizeG_A
	)		const

inline

Definition at line 113 of file SParameterBlockVF.hpp.

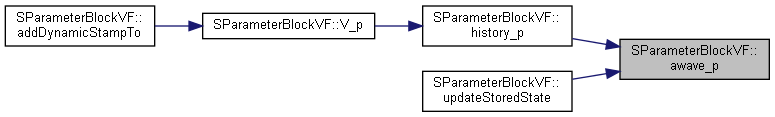

Here is the caller graph for this function:

◆ bwave_p()

template<typename T >

T SParameterBlockVF< T >::bwave_p	(	const size_t	p,
		const Matrix< T > &	solutionMatrix,
		const size_t	currentSolutionIndex,
		const size_t	sizeG_A
	)		const

inline

Definition at line 133 of file SParameterBlockVF.hpp.

◆ history_p()

template<typename T >

std::complex<T> SParameterBlockVF< T >::history_p	(	const size_t	p,
		const Matrix< T > &	solutionMatrix,
		const size_t	currentSolutionIndex,
		T	timestep,
		const size_t	sizeG_A
	)		const

inline

Definition at line 85 of file SParameterBlockVF.hpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readInPRR()

template<typename T >

void SParameterBlockVF< T >::readInPRR	(	std::string	filePath,
		size_t	numPorts
	)

inline

Definition at line 385 of file SParameterBlockVF.hpp.

Here is the caller graph for this function:

◆ setConstants()

template<typename T >

void SParameterBlockVF< T >::setConstants ( T timestep )

inline

Definition at line 235 of file SParameterBlockVF.hpp.

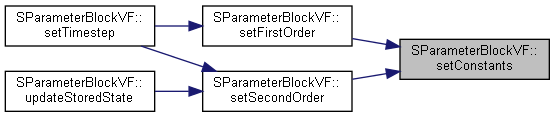

Here is the caller graph for this function:

◆ setFirstOrder()

template<typename T >

void SParameterBlockVF< T >::setFirstOrder ( T timestep )

inline

Definition at line 256 of file SParameterBlockVF.hpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setSecondOrder()

template<typename T >

void SParameterBlockVF< T >::setSecondOrder ( T timestep )

inline

Definition at line 285 of file SParameterBlockVF.hpp.

Here is the call graph for this function:

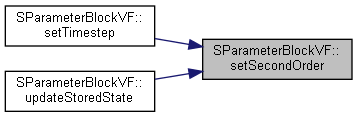

Here is the caller graph for this function:

◆ setTimestep()

template<typename T >

void SParameterBlockVF< T >::setTimestep ( T timestep )

inlinevirtual

initialises the component

Parameters

timestep The length of each time step

Reimplemented from Component< T >.

Definition at line 319 of file SParameterBlockVF.hpp.

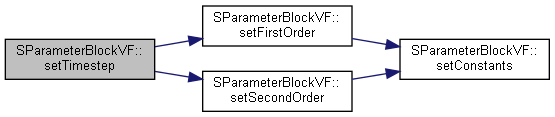

Here is the call graph for this function:

◆ updateStoredState()

template<typename T >

void SParameterBlockVF< T >::updateStoredState	(	const Matrix< T > &	solutionMatrix,
		const size_t	currentSolutionIndex,
		T	timestep,
		size_t	numCurrents
	)

inlinevirtual

Updates any stored state based on the current solution index.

Parameters

solutionMatrix	A vector containing all past solutions to the circuit
currentSolutionIndex	The current timeStep index
timestep	The length of each time step
sizeG_A	the size of the A portion of G, marks the end of the equiv currents

Reimplemented from Component< T >.

Definition at line 204 of file SParameterBlockVF.hpp.

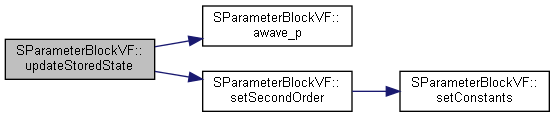

Here is the call graph for this function:

◆ V_p()

template<typename T >

T SParameterBlockVF< T >::V_p	(	const size_t	p,
		const Matrix< T > &	solutionMatrix,
		const size_t	currentSolutionIndex,
		T	timestep,
		const size_t	sizeG_A
	)		const

inline

Definition at line 106 of file SParameterBlockVF.hpp.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ firstOrder

template<typename T >

bool SParameterBlockVF< T >::firstOrder = true

Definition at line 81 of file SParameterBlockVF.hpp.

◆ numPorts

template<typename T >

size_t SParameterBlockVF< T >::numPorts = 0

Definition at line 80 of file SParameterBlockVF.hpp.

◆ port

template<typename T >

std::vector<SParameterPortVF<T> > SParameterBlockVF< T >::port

Definition at line 79 of file SParameterBlockVF.hpp.

◆ z_ref

template<typename T >

T SParameterBlockVF< T >::z_ref = 0

Definition at line 83 of file SParameterBlockVF.hpp.

The documentation for this struct was generated from the following file:

D:/dslog/Documents/JUK1/C++/src/includes/CircuitElements/SParameterBlockVF.hpp
